central induction water heater

Central Induction heating water heater

150L/200L/250L/320L(split type only)

stainless steel or porcelain tank,foam isolation,powder coated or stainless steel cover

220v 50hz 2800w power

fast heating and LCD programing,touch type switch

safety : water and electricity separate

healthy water : magnetic soft water

suitable for 5-10 people having bath

Double level overheat protection,dry burn protection,electric leackge protection

Max flow rate 6L/m

Working water pressure 0.05-0.5Mpa

Max temperature 60 C°

free standing indoor or outdoor

shower and room heating combine in one unit

with circulation pump


Model

Rated power supply

Product size

Water flow

Tank and Suitable people

Require circuit breaker

Section of power wire

DCR-150

combine type

2.8KW, 220V

50hz-60hz

Ø520x1560mm

6L/M 45kgs

150L(3-5)

15A

≥2.5mm2

DCR-200

combine type

2.8KW, 220V 50hz-60hz

Ø560x1600mm

6L/M  50kgs

200L(6-7)

15A

≥2.5mm2

DCR-250

combine type

2.8KW, 220V 50hz-60hz

Ø700x1800mm

6L/M  55kgs

250L(8-10)

15A

≥2.5mm2

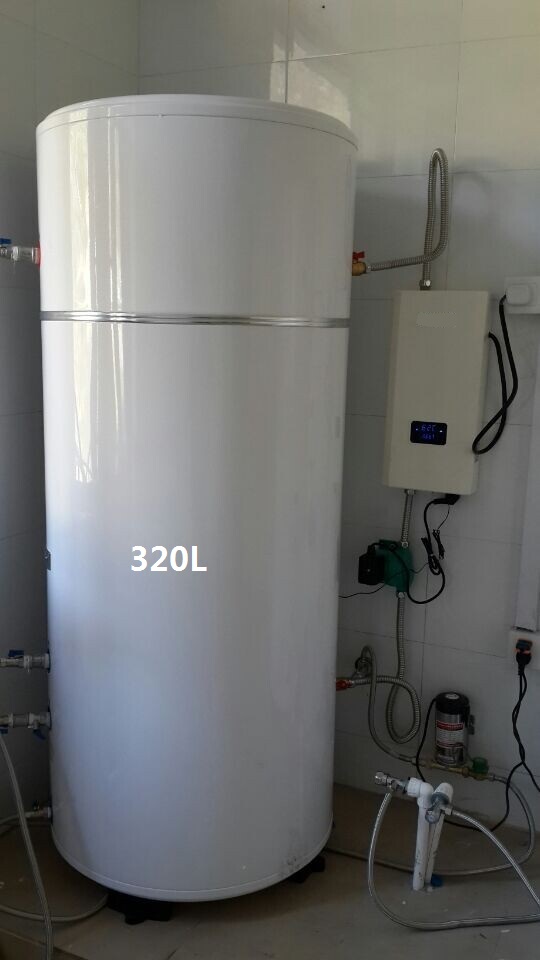

320L the heating part outside the tank
